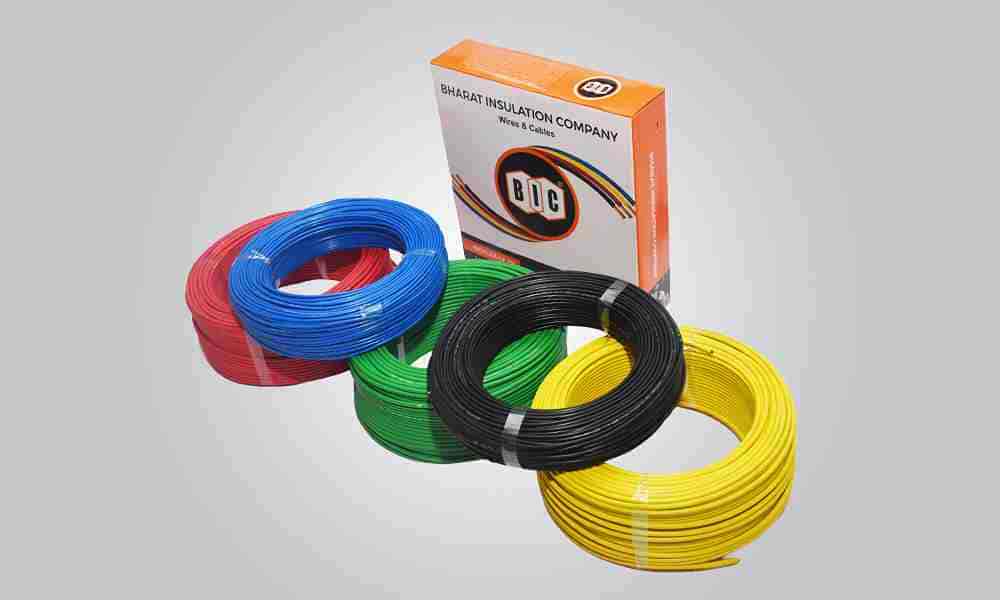

Bharat Insulation Company manufactures both single-core and multi-core insulated flexible cables, widely used in the internal wiring of electrical equipment, control panels, industrial machinery, appliances, and office automation equipment. These cables are constructed using Class 5 flexible copper conductors and are insulated with high-quality PVC or low-smoke, halogen-free compounds, making them reliable, heat-resistant, and electrically conductive.
Insulated cables are electrical wires covered with non-conductive materials to protect against electric shock, short circuits, and fire hazards. When paired with flexible conductors, these cables become bendable and easy to install, making them ideal for a variety of electrical and industrial applications.
The applications of flexible (IS 694) cables include machine control wiring, engineering plants, refrigeration plants, appliances (home and industrial), office equipment machines, paint shop, control panel wiring, and general use as control cables in vario us machines and equipment’s.
| Size Range | Specifications |
|---|---|
| 0.5 & 0.75 Sq. mm | IS 694, IS 8130 Class 5, IS 5831 Type D |
| 1 to 4 & 25 to 120 Sq. mm | IS 694, IS 8130 Class 5, IS 5831 Type D |
| 0.5 to 120 Sq. mm | IS 694, IS 8130 Class 5, IS 5831 Type D (FR) |
| 0.5 to 120 Sq. mm | IS 694, IS 8130 Class 5, IS 5831 Type D (FR-LSH) |
| 0.5 & 0.75 Sq. mm, 6 to 16 Sq. mm | IS 694, IS 8130 Class 5, IS 5831 Type C (HR) |
| 1 to 4 & 25 to 120 Sq. mm | IS 694, IS 8130 Class 5, IS 5831 Type C (HR) |
| 0.5 & 0.75 Sq. mm, 6 to 16 Sq. mm | IS 694, IS 8130 Class 5, IS 5831 Type C (HR) |
| 0.5 to 120 Sq. mm | IS 694, IS 8130 Class 5, IS 5831 Type C (HR FR) |
| 0.5 to 16 Sq. mm | EN 60228 class 5, Type LSOH EI 5 BS EN 50363-5 |
This multicore cable is a type of cable that consists of multiple individual copper wires, or cores, that are insulated with PVC (polyvinyl chloride) and bundled together within a single outer sheath. These cables are commonly used for electrical wiring in residential, commercial, and industrial settings, as well as for control and signal transmission in various types of ma chinery and equipment. Multicore up-to 19 core s.
Size Ranges: 0.5 mm² to 10 mm²
| Specifications |
|---|
| IS 694, IS 8130 Class 5, IS 5831 Type D for insulation & ST-3 & for sheathing |
| IS 694, IS 8130 Class 5, IS 5831 Type C for insulation & ST-2 for sheathing |
| IS 694, IS 8130 Class 5, IS 5831 Type D for insulation & ST-3 (FR) & for sheathing |
| IS 694, IS 8130 Class 5, IS 5831 Type C for insulation & ST-2 (FR) for sheathing |
| IS 694, IS 8130 Class 5, IS 5831 Type D for insulation & ST-3 (FR-LSH) for sheathing |
| Product Type | Specifications |
|---|---|
| XLPE/PVC | Class 2 (1 to 6 Sq. mm) for others class 5 to EN 60228, XLPE insulation & PVC ST-2 sheath |
Flexible conductor wires are used in a wide range of industries due to their ability to handle frequent bending and movement.
A flexible insulated cable is an electric wire with a high-strand conductor and protective insulation that allows bending and movement without damage.
They are widely used in domestic appliances, automotive systems, and portable tools where high flexibility and reliability are needed.
Heat-resistant insulation materials such as silicone or rubber protect the conductor from high operating temperatures, ensuring performance in hot environments.
Single-core cables contain one conductor, whereas multi-core cables contain two or more conductors, allowing multiple electrical circuits in one cable.
Yes. Copper offers better conductivity, flexibility, and durability, making its flexible cords ideal for most applications’.
